SMD2835 DC36V 60PCS Linear LED Module 4000K Color Temperature

Name: SMD2835 DC36V 60PCS Linear LED Module 4000K Color Temperature
Brand: mankun
Price: 1 USD

China SMD2835 DC36V 60PCS Linear LED Module 4000K Color Temperature wholesale

Place of Origin : Guangdong, China

Brand Name : mankun

Certification : ce, RoHS

Packaging Details : LED module bubble packaging, 10PCS each box, 100PCS a box

MOQ : 1000 Sets

Price : Negotiation

Model Number : 16156

Payment Terms : Negotiation

Delivery Time : 5-10 work days

Power : 30W

Viewing Angle(°) : 120-160

Color Rendering Index(Ra) : 80

Color Temperature : 4000K

Input Voltage : DC36V

LED QTY : 60PCS

Product name : Led linear Module

LED Chip : 2835 Led Chip Module

Contact Now

SMD2835 DC36V 60PCS Linear LED Module 4000K Color Temperature

LED Strip Lighting 60leds SMD2835 36V Led Linear Module Hard Strip Bar Light

Performance characteristics:

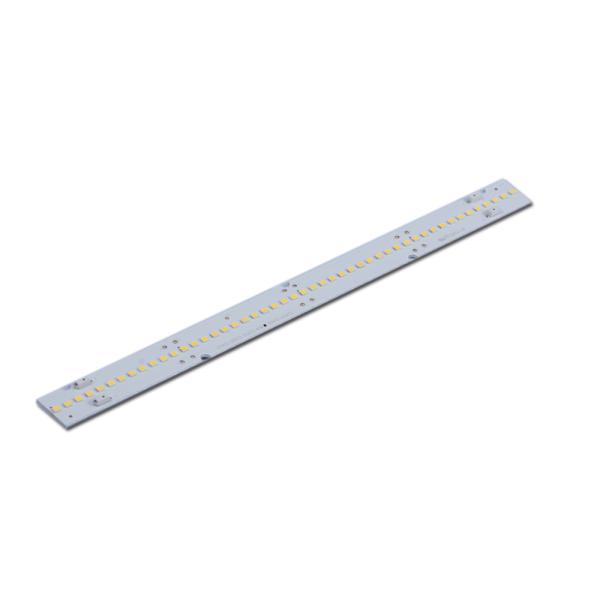

Linear LED modules for application in linear and area lighting.

Combinable modules for an optimal,extensive design.Perfect light uniformity.

Ideal for residential,office,retail and industrial lighting.

Extended lifetime >60.000h.

Ta -250C...+550C, Tc 850C, Tp 750C.

With a high lumen of up to 169lm/W.

Small tolerance in color temperature of 3MacAdam(5 SDCM).

CRI > 80 for use in all common applications.

Easy electrical connection via push-in terminals with release option.

Easy installation by means of screw fastening.

It can reach the standard of SELV and non-SELV applications.

Matrix-topology to avoid bigger dark zones in case of single LED failures.

Gap distances is designed for voltages max.250 VDC.

Product description

Product Name	20w Led Linear module
Light body material	Aluminum base
Surface treatment	aluminum pcb
Led Source	48 pieces smd 3030
Color Temperature (CCT)	3000K, 4000K, 6000K
Input Voltage	DC36V
Power Supply	NO driver
Optional Functions	0-10V dimming, DALI dimming, CCT dimming, 2.4G Dimming
Beam angles	120°
Application	Home lighting, office lighting, studio lighting, shopping mall lighting etc.

Specific technical data

CRI	CCT K	Current mA	Flux Tc 250C lm	Flux Tc 650C LM	Power Tc 650C W	Efficacy Tc 250C lm/W	Efficacy Tc 650C lm/W	lpk mA	Vmin. Tc 250C @lmin	Vmax. Tc 250C @lmax
>80	3000	540	3408	3195	21.3	160	150	1200	36.5	39.5
		700	4210	3933	27.7	152	142
		800	4676	4360	31.6	148	138
	4000	540	3578	3344	21.3	168	157
		700	4432	4127	27.7	160	149
		800	4898	4898	31.6	155	145
	5000	540	3621	3408	21.3	170	160
		700	4515	4210	27.7	163	152
		800	4992	4676	31.6	158	148
The mentioned data can have a 10% tolerance.
